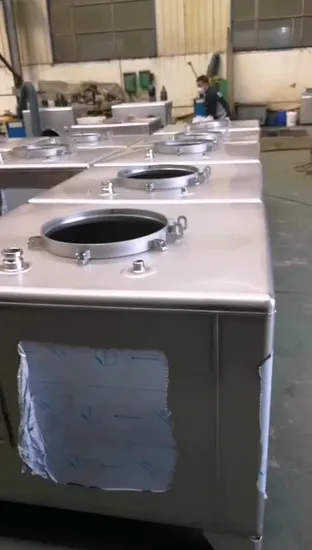

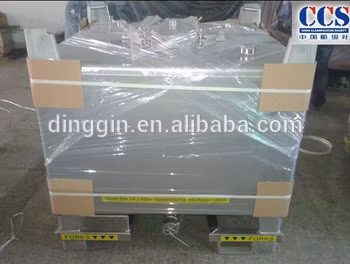

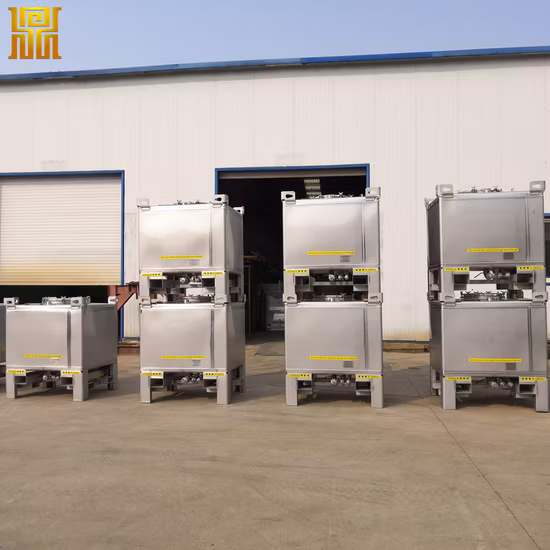

550 Gal Stainless Steel Liquitote IBC Tote Tank

Basic Info.

Model NO.	135gallon/ 275gallon /350gallon/550gallon
Type	Low Temperature Storage & Transportation Equipment
Storage Objects	Solid, Liquid
Manhole Diameter	450mm or Size by U Need
Container Wall Thickness	2.5/3.0mm
Stacking in Warehouse	3h
Stacking in Transport	2h
Outlet Valve	Ball Valve /Butterfly Valve
External Dimension	1150X1150X1170/1135
Fork Height	78mm
Approval	Imdg Un31A/Y
Volume	1-2m³
Material	Ss304/Ss316L/Q235B
Transport Package	PE Film & Paper Protection
Specification	CCS; IMDG UN31 / 11 A/Y
Trademark	DINGGIN
Origin	Dalian China
HS Code	86090090
Production Capacity	100PCS/Month

Product Description

550 Gal Stainless Steel Liquitote IBC Tote Tank
We design for construction and type testing of IBC according to IMDG, and UN approved by BV or CCS. Superior machining facilities help us ensure the professional production and excellent quality. Advanced welding process and professional working team help us keep the good quality. Advanced designing thoughts, technical innovation and new products development corresponded with all kinds of need.
IBC(intermediate bulk container)is one of our main product. Our IBC follow CCS (China Classification Society) approval, get UN certification. Each type IBC have to experience those test, and then we can quantity production...
Design type tests required:
1 Vibration test
2 bottom lift test
3 top life test
4 stacking test
5 leakproofness test
6 internal pressure (hydraulic) test
7 drop test
8 we offer OEM and ODM service
Why choose DINGGIN IBC
1 More safer
Design for construction and type testing od ibc according IMDG2008, and UN approval by BV or CCS
2 Ecomomical & enviromental -
Longer serving life
3 Superior maching facilities help us ensure the professional production and excellent quality
4 Advanced welding process and professional working team help us keep the good quality
5 Advenced designing thoughts ,technical innovation and new products development corresponded with all kinds of need

SPECIFICATION:
Type:	Intermediate Bulk Containers
Capacity:	100---2000L Size by you need
Place of Origin:	Liaoning China (Mainland)
Tare Mass:	225KG
Sealing Gasket:	EPDM
Max Product Mass :	1440KG
Certification:	UN31 A/Y
Stacking Test Load:	2995KG
Manlid:	450mm,6point swing bolts assembly
Top:	2 no.DN40 socket with cap;1 no.DN50 socket with cap
Model Number:	12KC1200SS/SS/Q01
Outlet:	DN50,3 pcs ball valves,with camlock dustcap

550 Gal Stainless Steel Liquitote IBC Tote Tank

If any inquiry , pls contact us freely , We are service in 24hours !
